SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Country/Region of Manufacture: China

Item Height: 5

Interchange Part Number: 1

Item Weight: 0.31kg

Manufacturer Part Number: 1

Placement on Vehicle: front

Material Type: plastic

Item Length: 20

Special Features: Display

Item Width: 5

Feathure: Adjustable speedometer

Match controller: For votol controller

communication optional: one-line/CAN-BUS

US Warehouse New Adjustable DKD LIN CAN-BUS Communication Optional Electric Scooter LCD Instrument Speedometer Display for VOTOL Controller

The new version speedometer is built for Votol controller, as the communication protocol should match with each other.

In LIN communication, the controller could match with the speedometer, it display battery voltage.

In CAN BUS communication, the controller could also match with the speedometer (SiAECOSYS CAN protocol), it display battery SOC if the battery protocol match with speedometer. If not, the speedometer will show lack of electricity always.

Thus,we suggest to do the speedometer as LIN communication version if client can't get can-bus battery.

One set including below kits

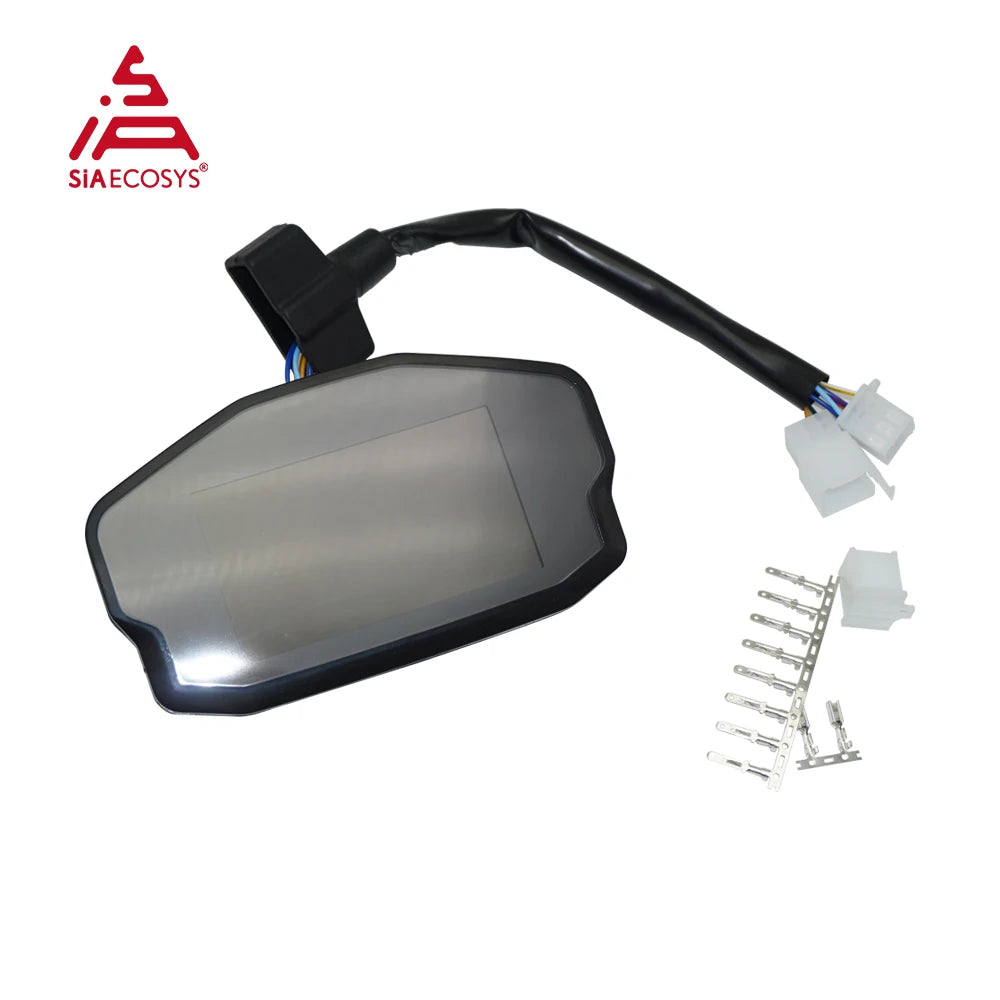

1.1pc X DKD LCD speedometer (adjustable)

Key Features

Both CAN and LIN communication are supported

Product Description

DKD LCD speedometer, Adjustable

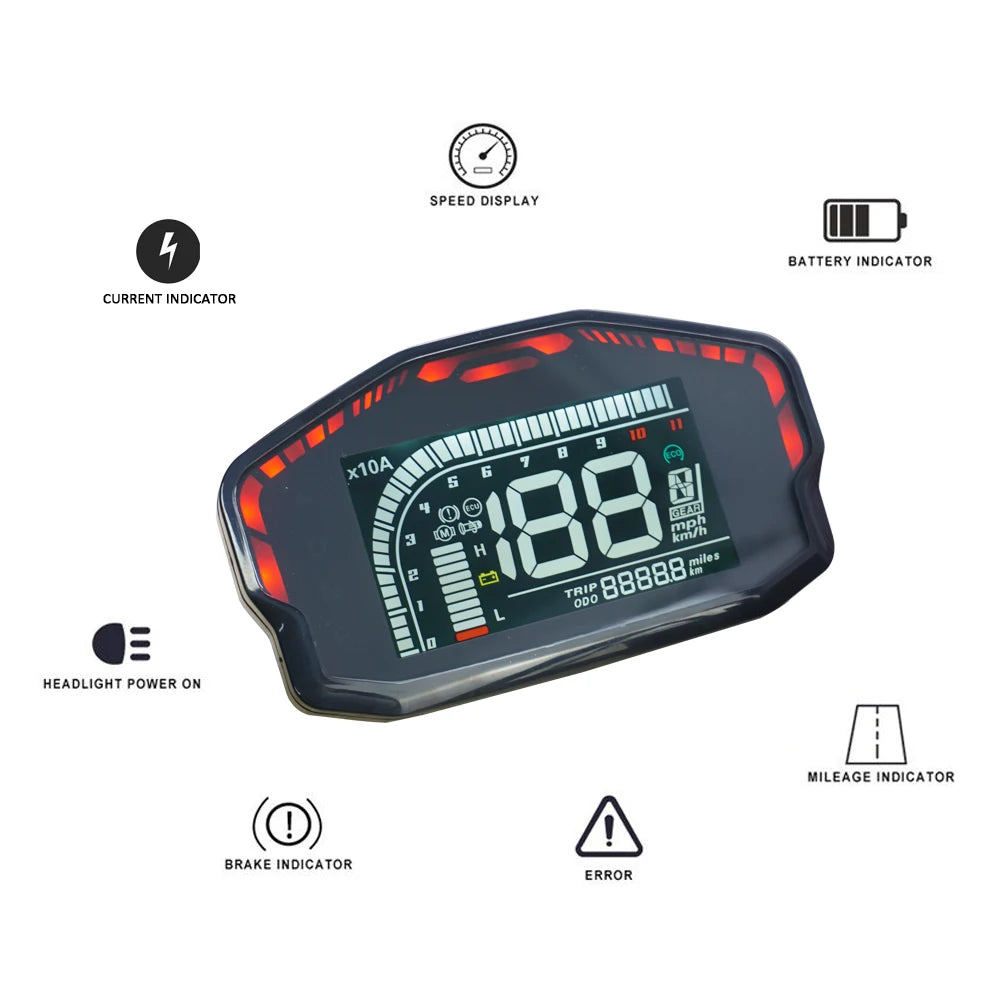

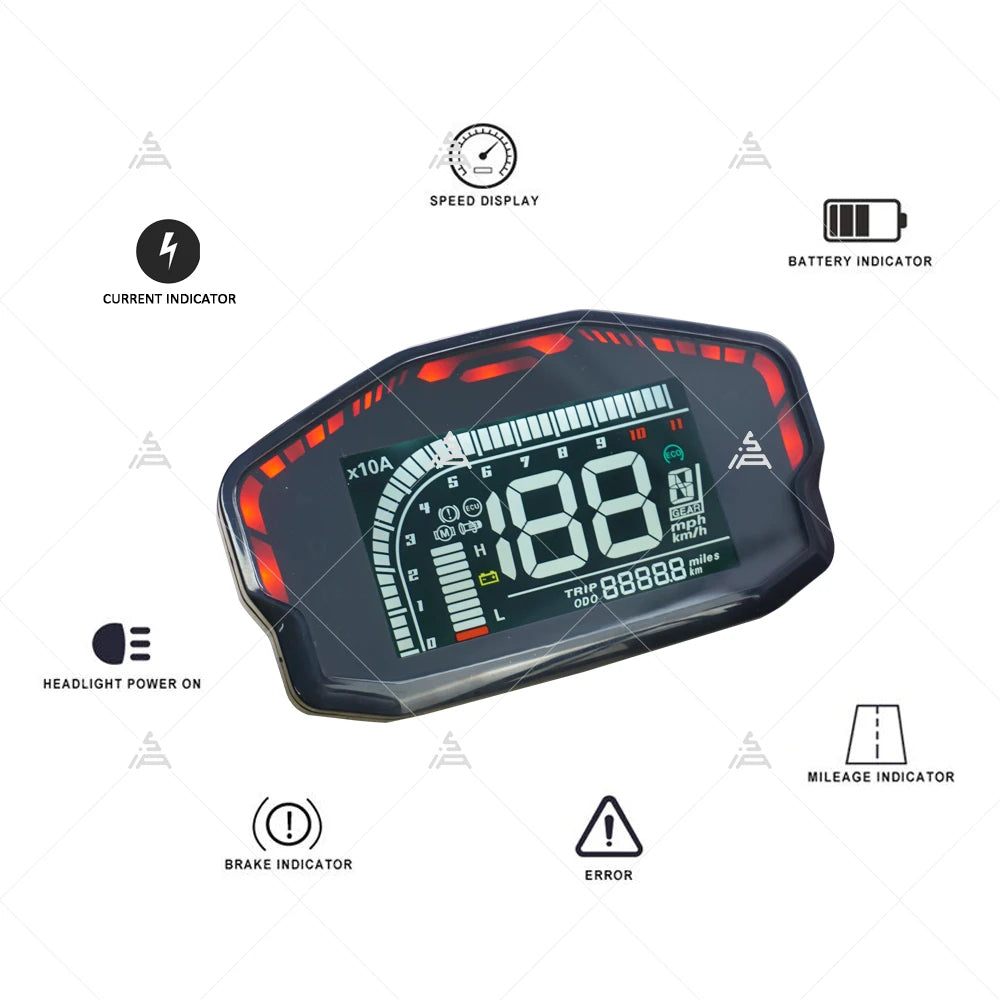

It display D N R, P, 1 2 3 S gear, and battery current X10.

For the speed, we recommend to set it as following as default (to match with QS138 3kW 12inch assembly).

·Wheel tire size: 130/70-12

·Pole Pairs: 5

·Gear Ratio: 1: 4.77

·Voltage: 72V (20s Lithium battery)

Mounting dimension

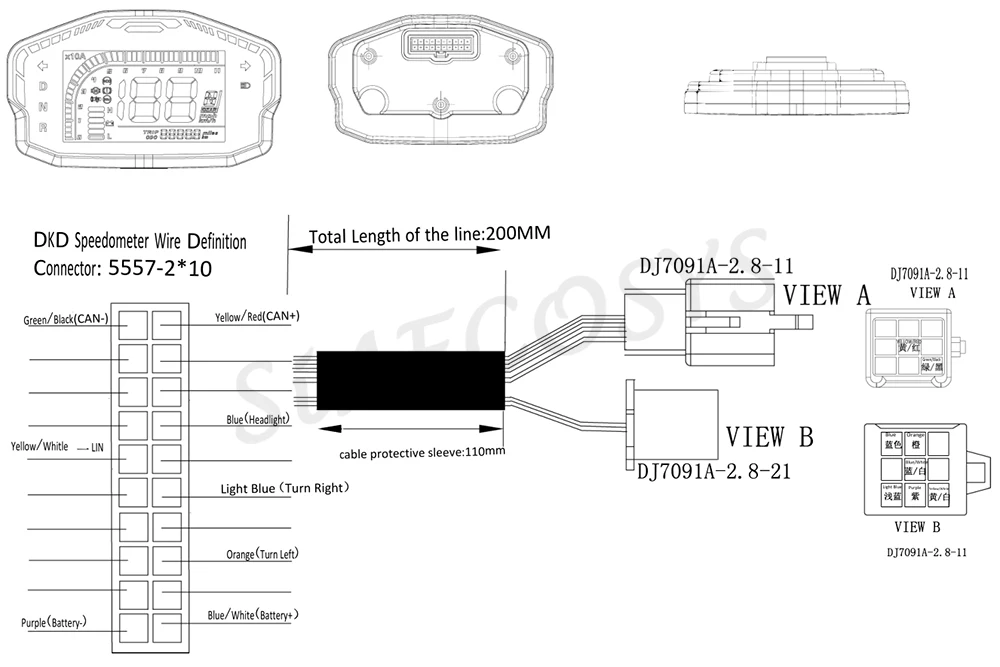

Wiring Diagram

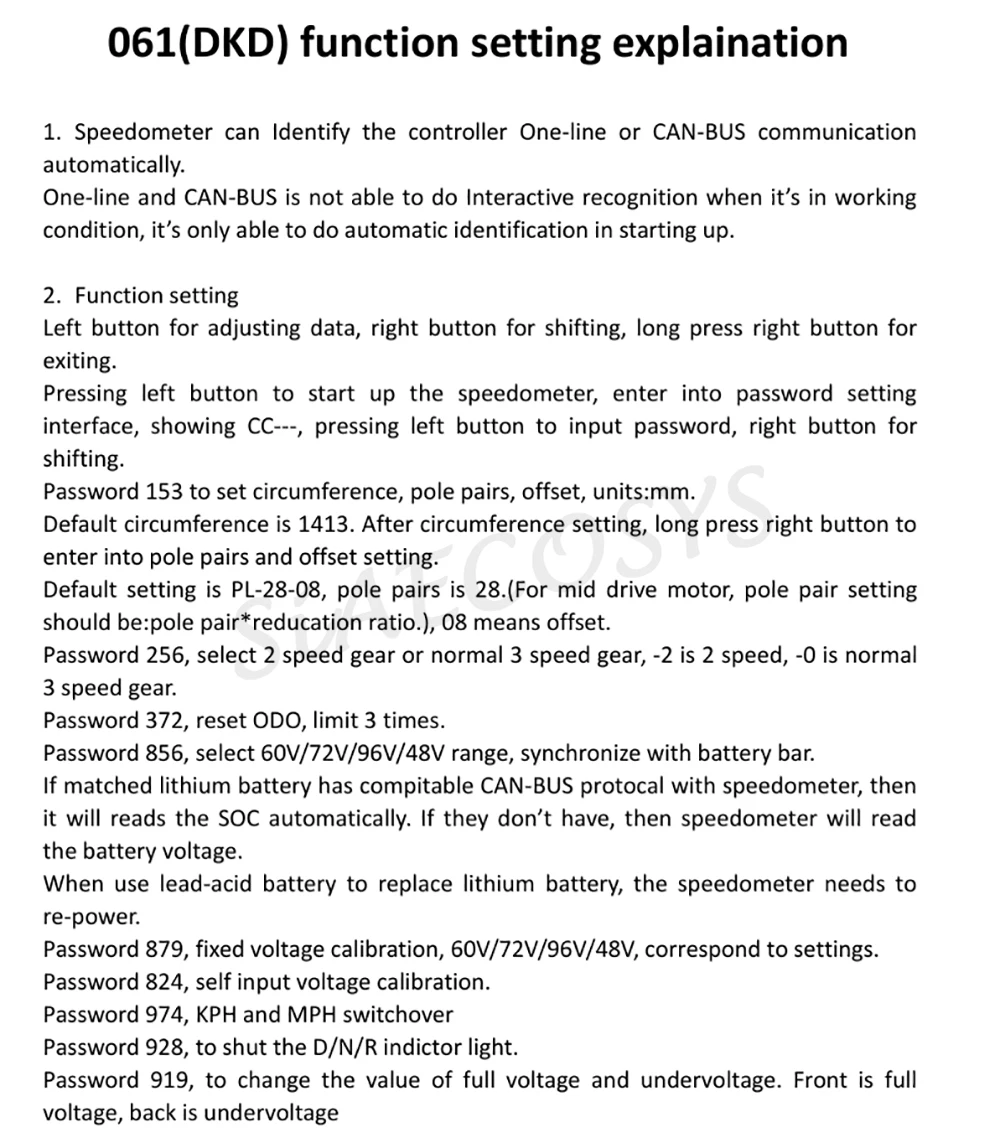

User Manual

Application
