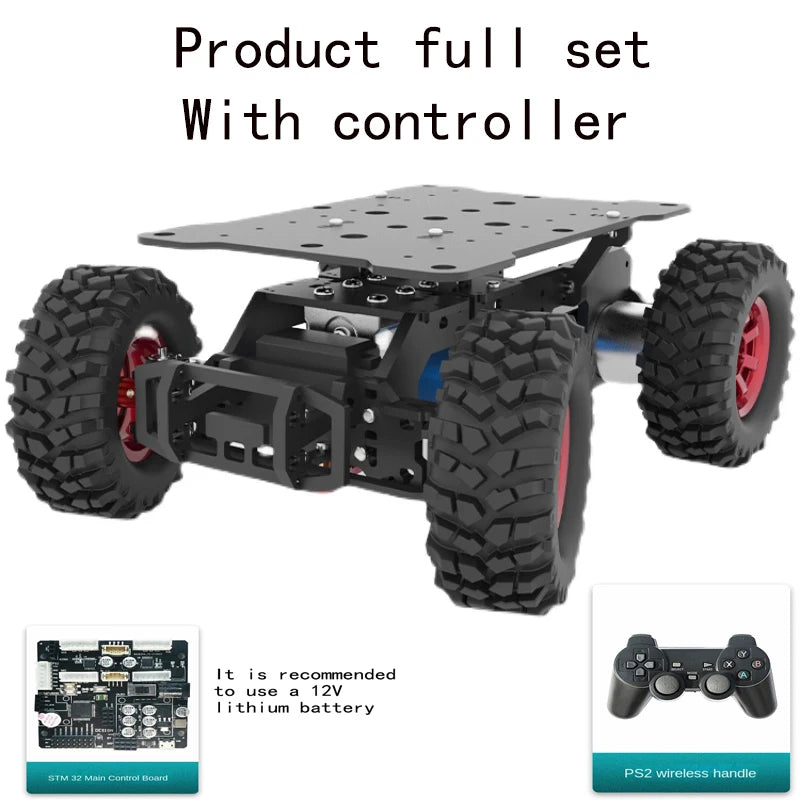

4-8KG Load 4WD Ackerman Robot Car Chassis with Encoder Motor Front Wheel Servo MG996 Steering Chassis Programmable Robot RC Tank

Features:

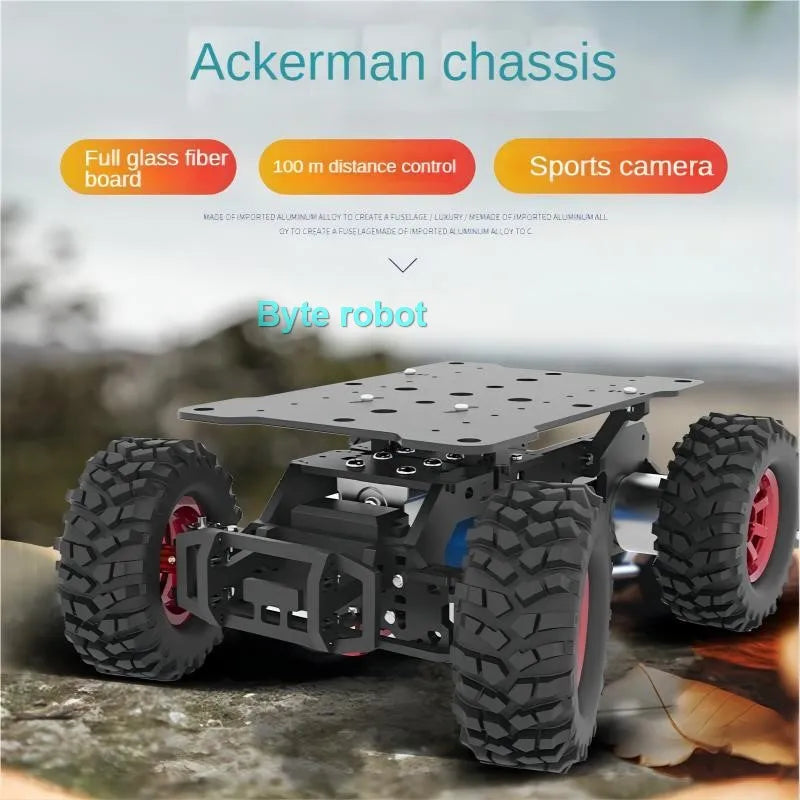

- The Ackerman chassis can be equipped with an action camera
- Upgraded performance: can be controlled by a RC controller in 100 meters; Multi-working mode can flexibly respond to various road surfaces

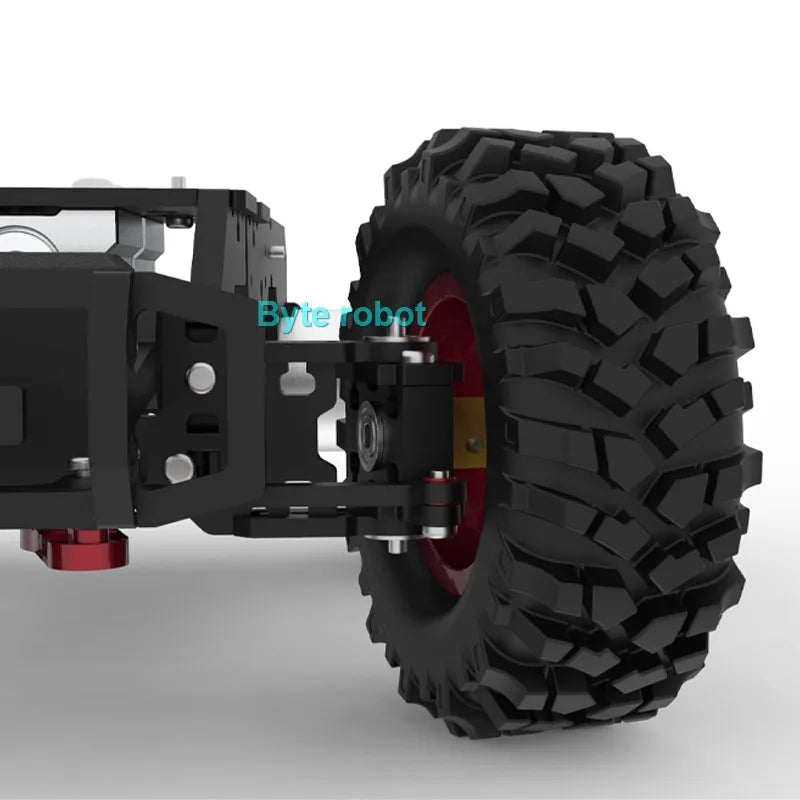

- Independent Suspension: High-strength stainless steel guarantees running strength. Ball bearings ensure smooth rotation

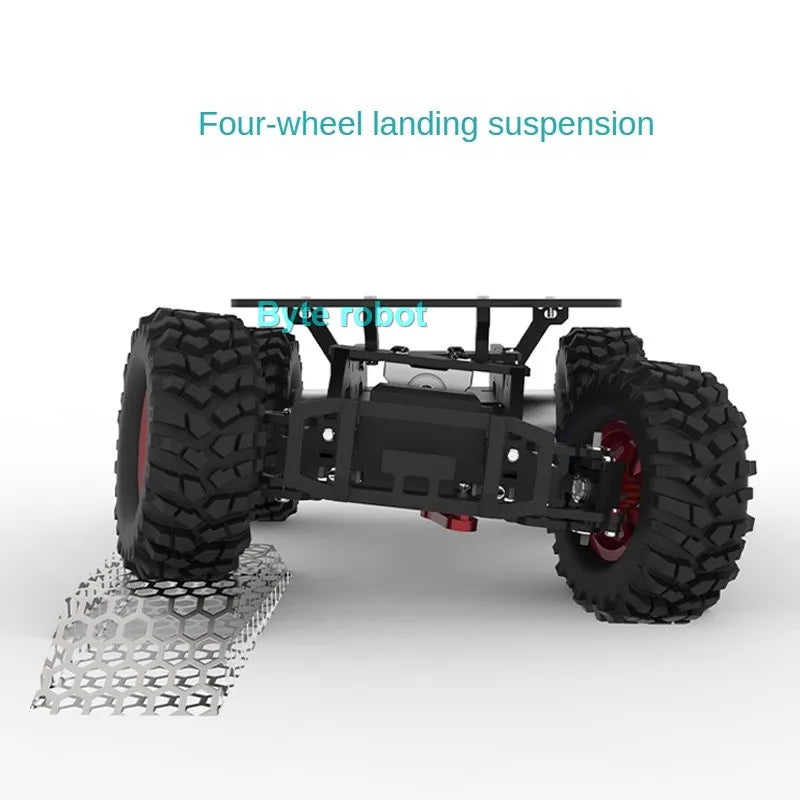

- Support all-wheel suspension
- Its whole body made of fiberglass board: the beautiful and atmospheric black fiberglass board is strong and impact-resistant, and has a long service life. Its strength is comparable to that of metal, and it does
not conduct electricity

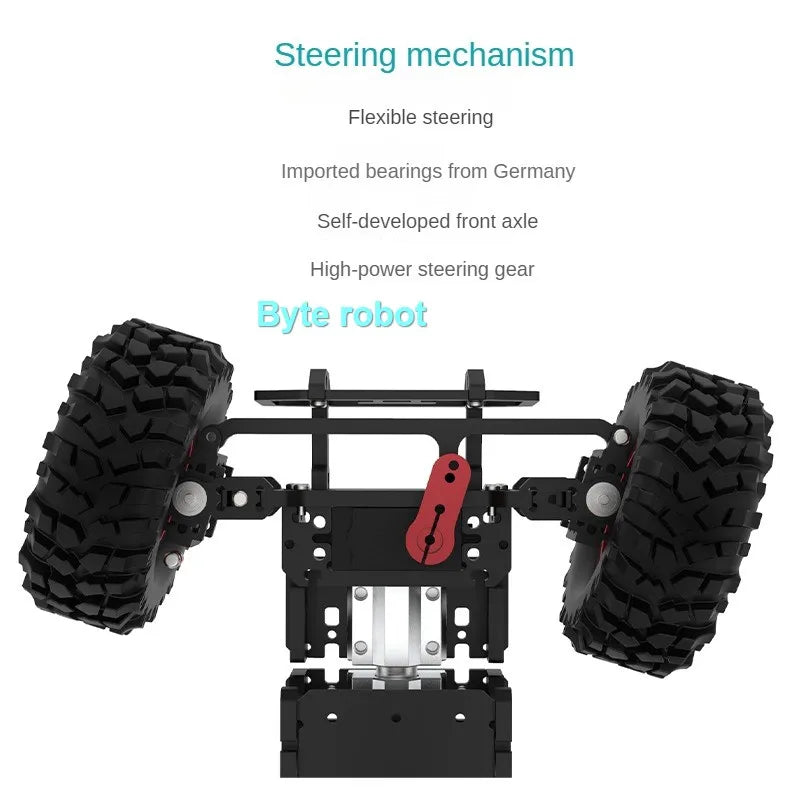

- Flexible steering mechanism: Adopt German imported bearings, self-developed front axle and high-power steering gear
- Shock-absorbing climbing tires: Hard plastic wheels and soft rubber tires help dampen shocks and reduce noise

Motor:
- Reduction ratio: 19
- No-load current: ≤ 120MA
- No-load speed: 530rpm
- Rated torque: 2.2kg.cm
- Rated current: ≤ 1A
- Rated speed: 407rpm
- Maximum torque: 3.1kg.cm
- Stall current: 2.3A

Encoder:
- Output signal: square wave (default)/sine wave (custom) AB phase
- Power supply voltage range: 3.3V-5V
- Operating temperature range: -40℃ to 120℃

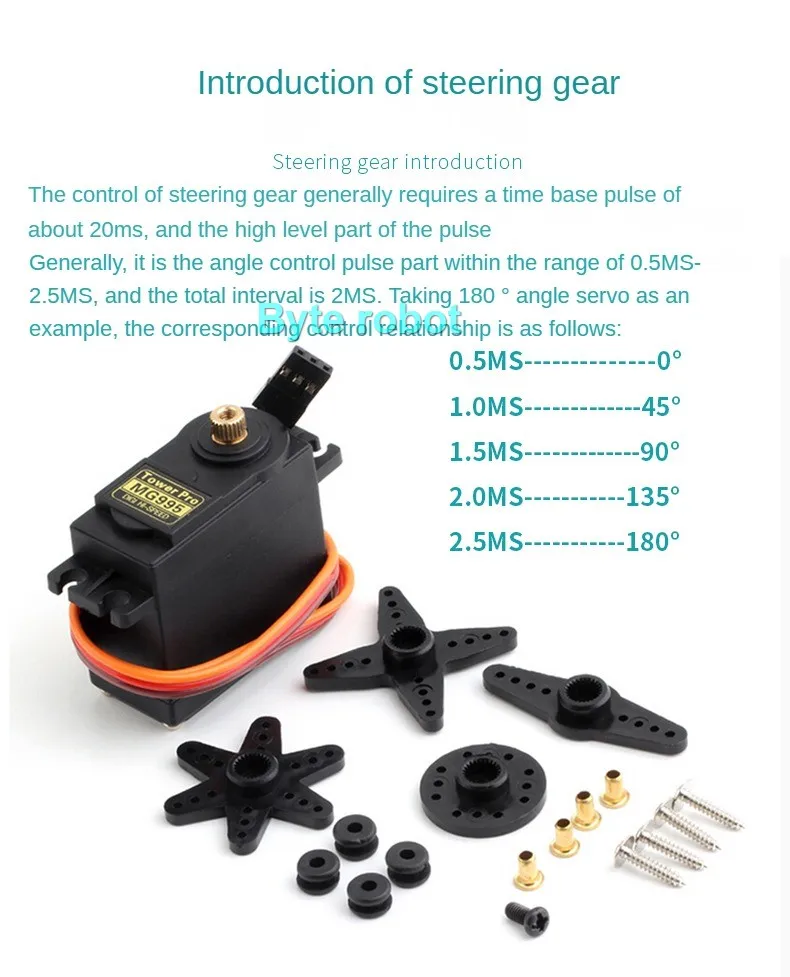

Servo:
- Structural material: Simulated metal copper gears
- Connection wires: yellow wire (signal wire), red wire (power wire), and brown wire (ground wire)
- Size: 40.7*19.7*42.9mm
- Weight: 55g
- Response speed: no-load speed 0.17 sec/60° (4.8V); 0.13 sec/60° (6.0V)
- Working dead zone: 4 microseconds
- Plug Specifications: Universal type for JR and FUTABA
- Working voltage: 3.0V-7.2V
- Working torque: 13KG/cm
- Operating temperature: -30°C to +60°C

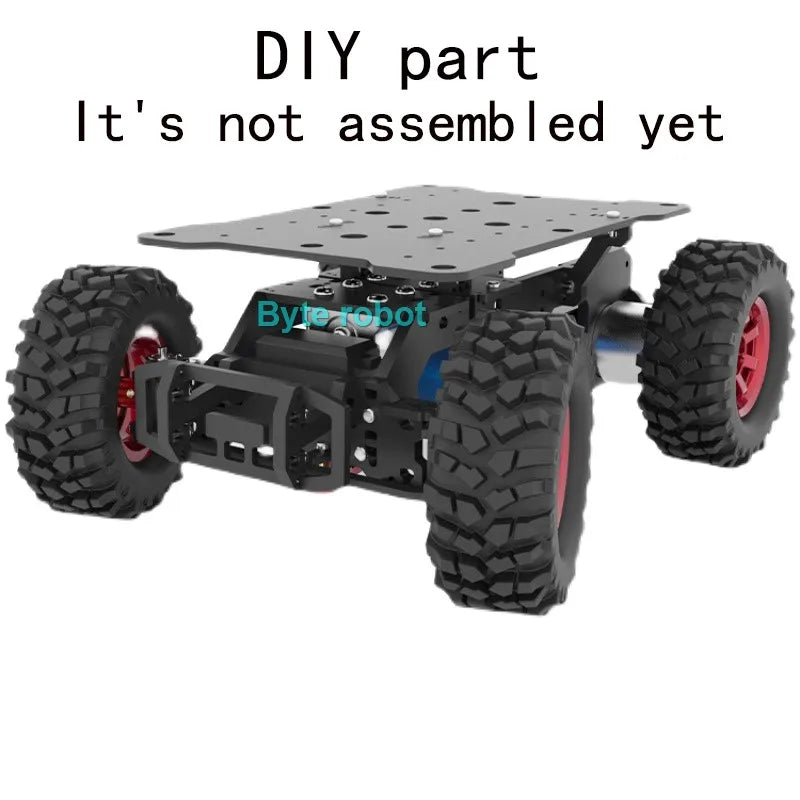

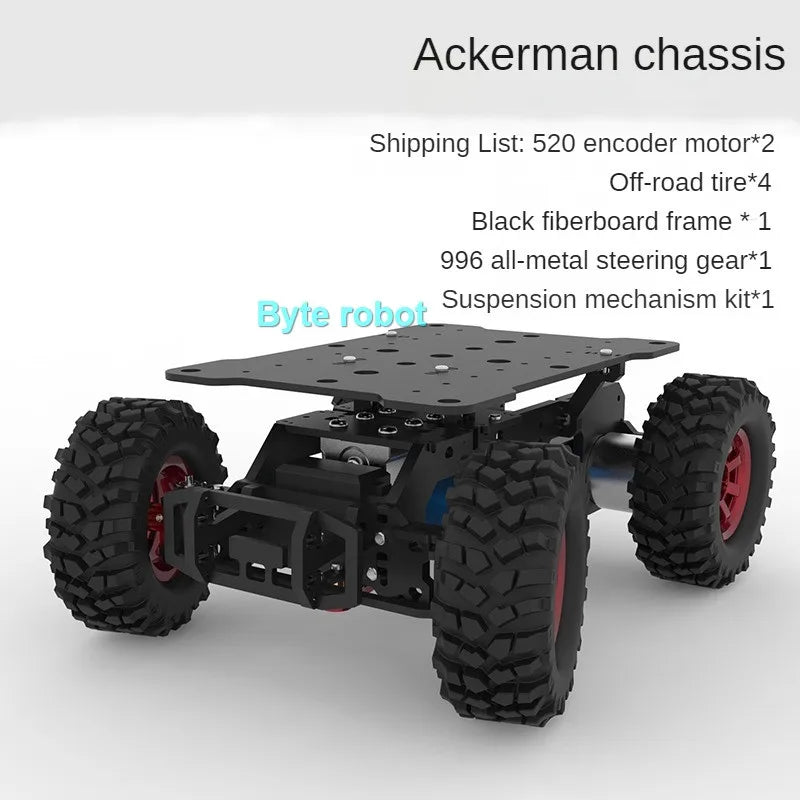

Unassembled RobotPackage Included:
520 encoder motor * 2 pieces

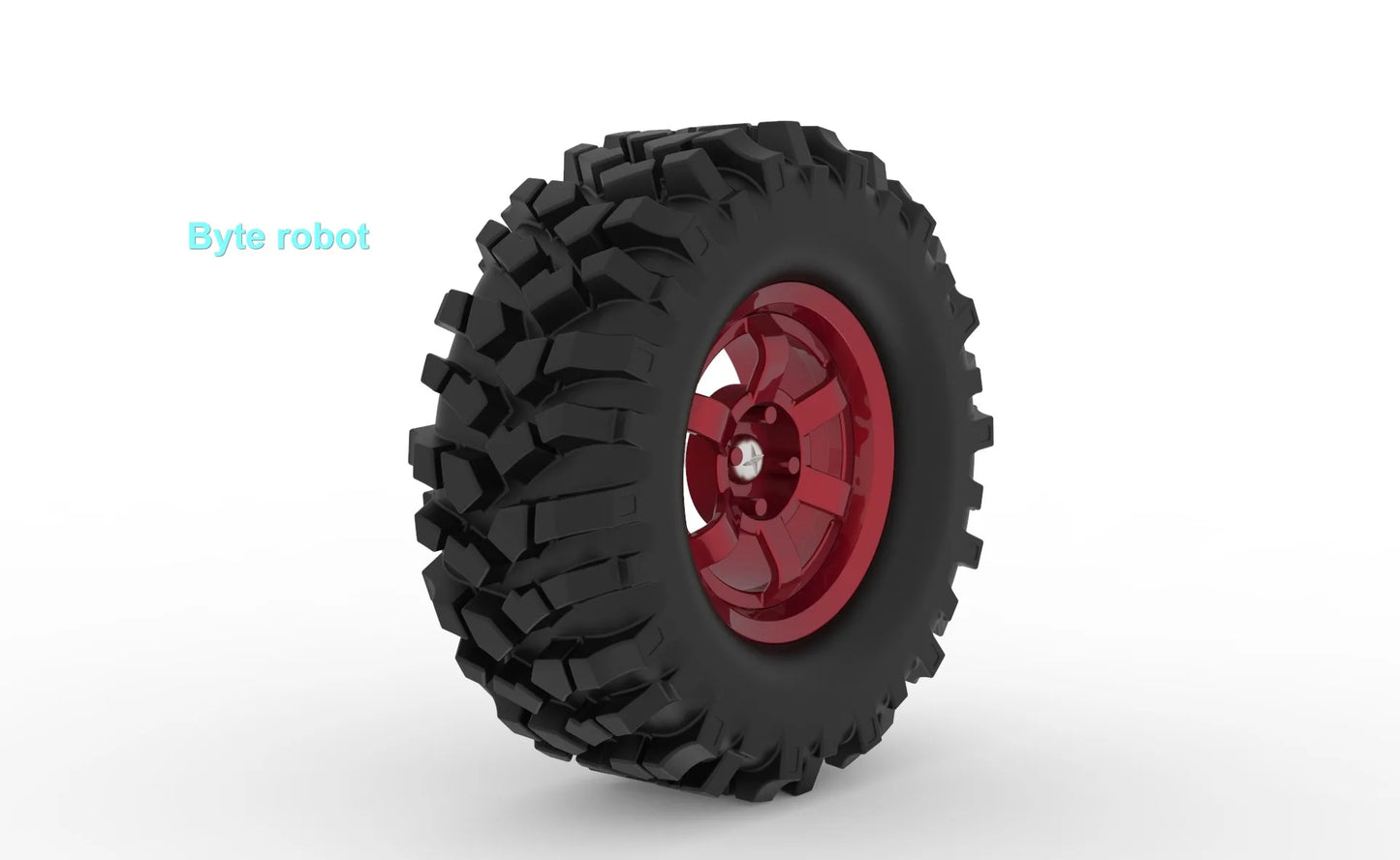

Off-road tires*4 pieces

Black fiberglass frame*1 set

999 All Metal Servo*1 Piece

Suspension mechanism kit*1set

Note: This is unassembled, you need to assemble it, we provide installation tutorials for free，Please leave your email address
